A Lumin Smart Panel (LSP) configured to connect over WiFi will lose connectivity when any of the following occur:

  • A WiFi router is replaced.
  • A WiFi network name (SSID) or password is changed.


This article outlines the process to re-introduce WiFi credentials to a previously-installed LSP. This process can be performed by a system owner, installer, or any other user within range of the home's WiFi network.


1. Ensure that the LSP is in Setup Mode, indicated by blinking blue and green lights on the side of the LSP.

  • If both lights are not blinking, press and release the button on the LSP labeled either WiFi or Setup. If both lights are still not blinking after this button press, please contact Lumin support.
2. Ensure that your mobile device is connected to the home's WiFi network.
3. Open the Lumin Smart mobile app and login.

4. Select the Menu icon in the upper left corner of the app.

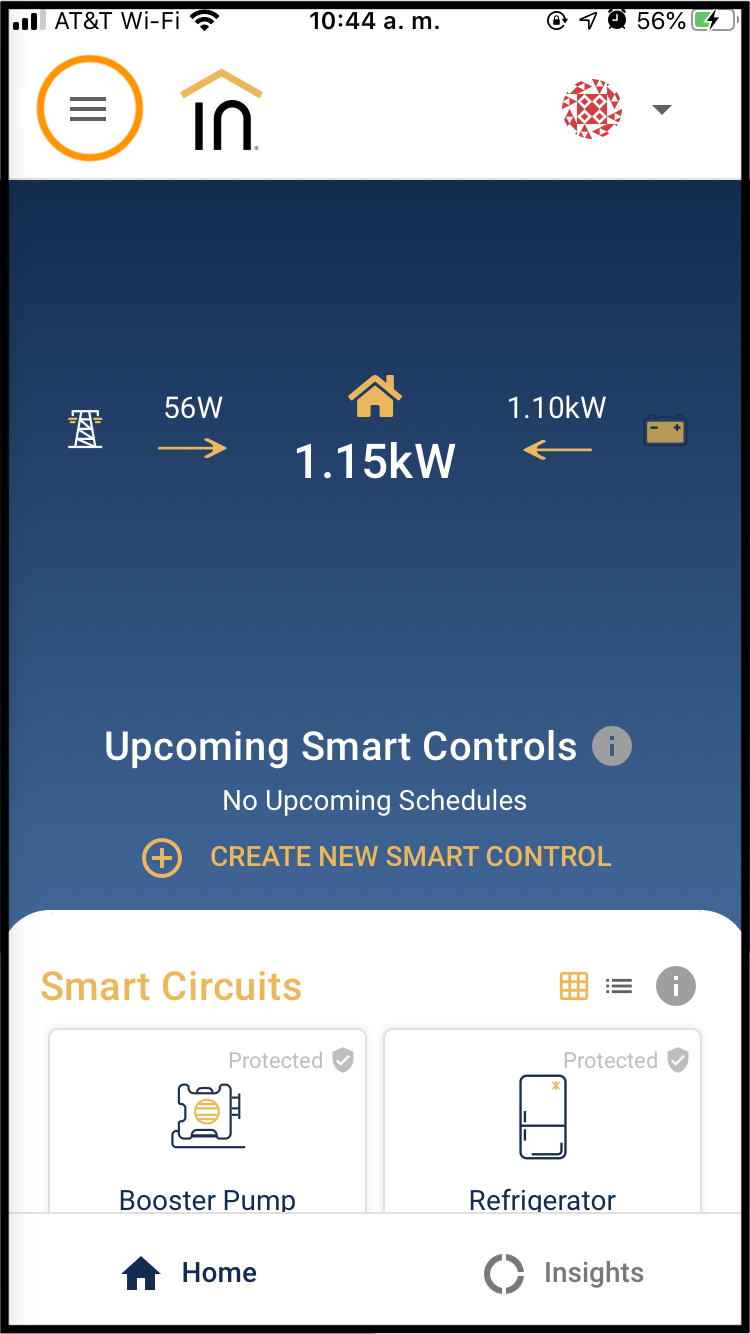

The Home screen of the Lumin Smart app. The Menu icon is circled.
5. Select Set up a new Lumin Smart Panel near the bottom of the menu.
  • You may see the offline LSP in the list of Lumin Smart Panels in the menu, but do not select it at this time.

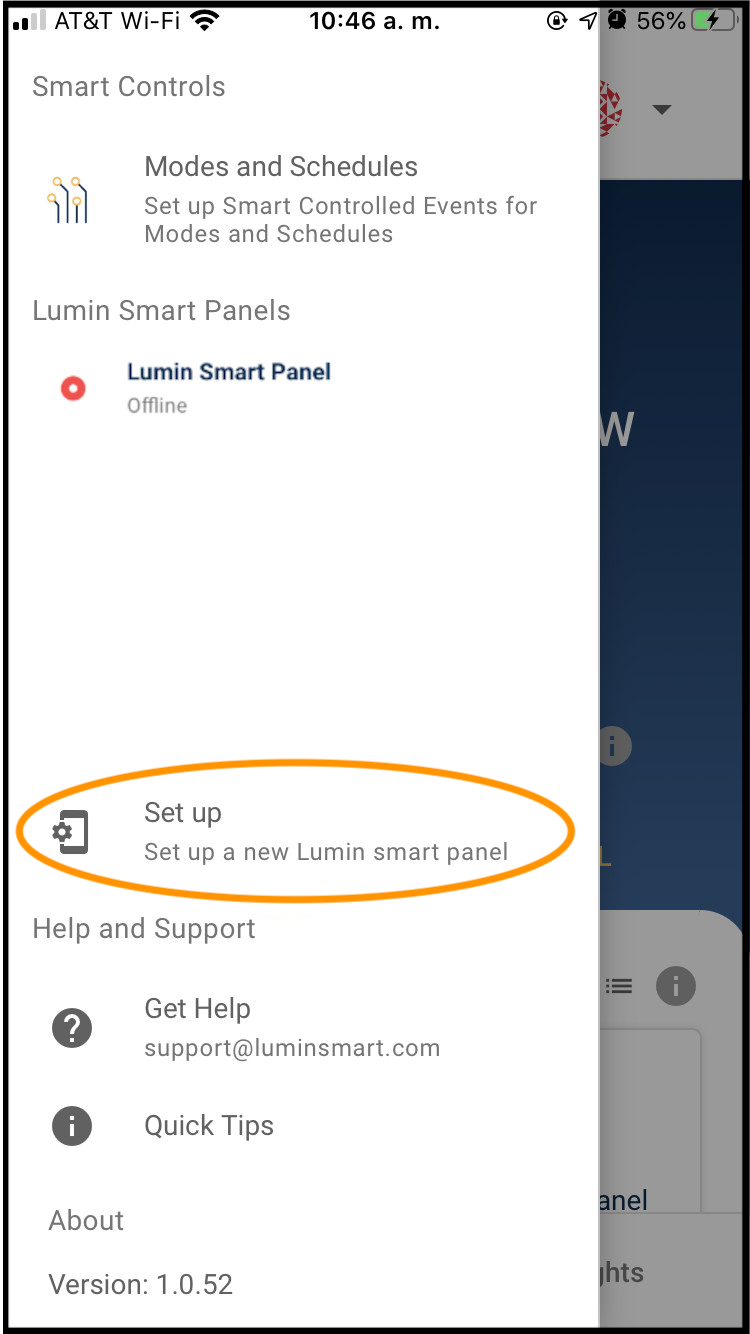

The Menu of the Lumin Smart app. The Set Up option is circled.

6. Follow the in-app prompts to ensure that the WiFi network and LSP will pair successfully.

The Before Connecting screen of the Lumin Smart app, which lists three steps that should be followed prior to connecting and starting the setup process.
7. This step will vary depending on if you're using an Android or iOS (Apple) device.
  • If you are using an Android device skip to the next step.
  • If you are using an iOS (Apple) device select Scan Barcode.

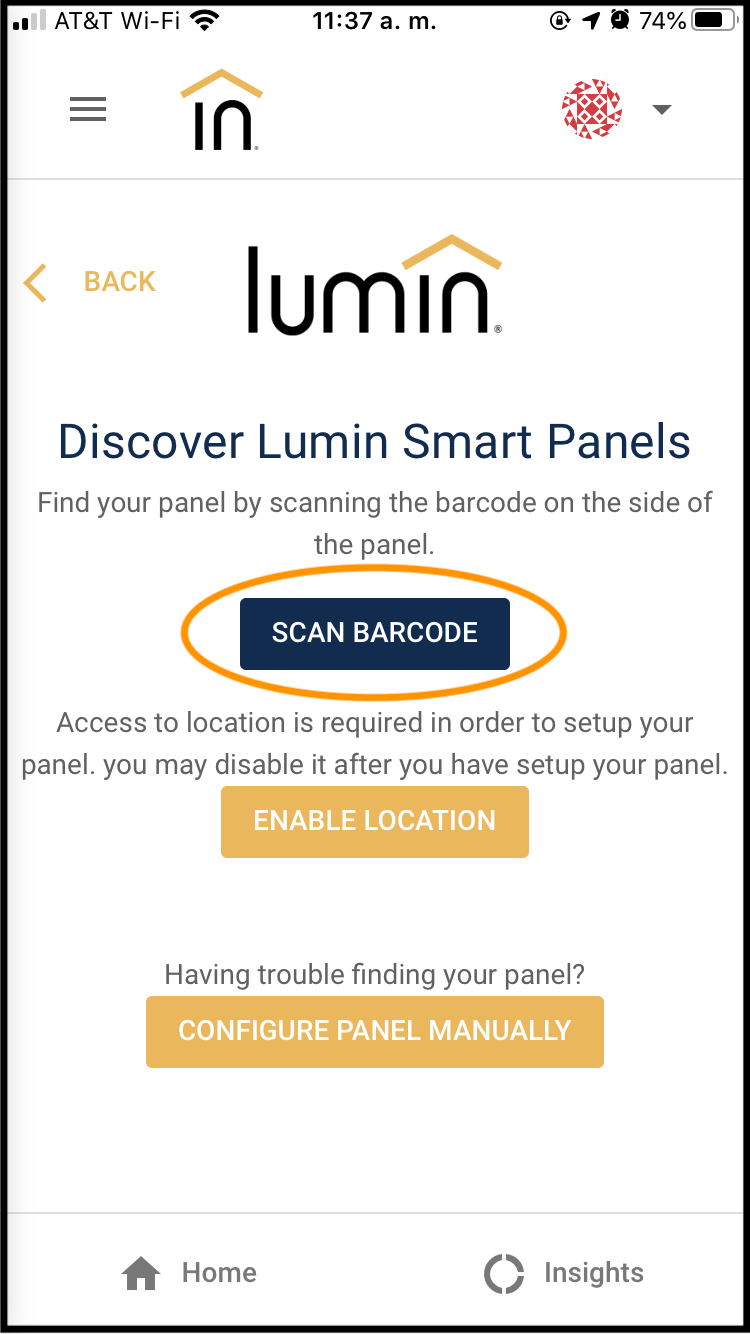

The Discover Lumin Smart Panels screen of the Lumin Smart app. It lists the following options: Scan Barcode, Enable Location, and Configure Panel Manually. The Scan Barcode button is circled.
8. This step will vary depending on if you're using an Android or iOS (Apple) device.
  • If you're using an iOS (Apple) device skip to the next step.
  • If you're using an Android device:
    1. Select your panel from the list of discovered devices when it appears.

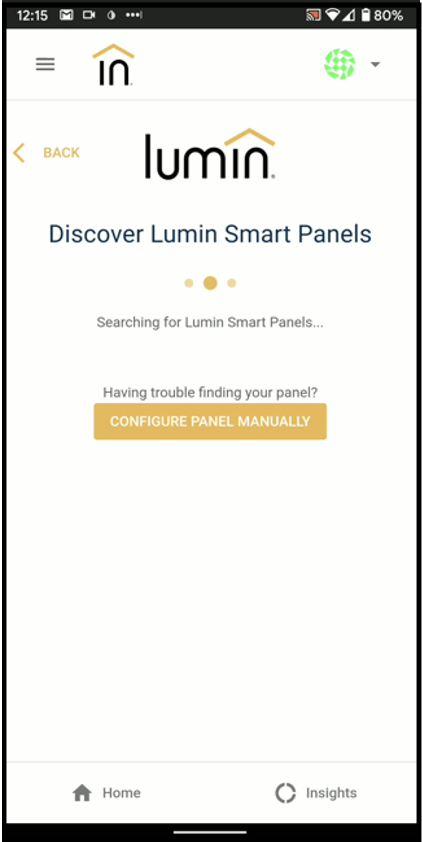

The Discover Lumin Smart Panels screen of the Lumin Smart app. It has three fluctuating dots as it searches for LSPs.

            2. Enable location when prompted.

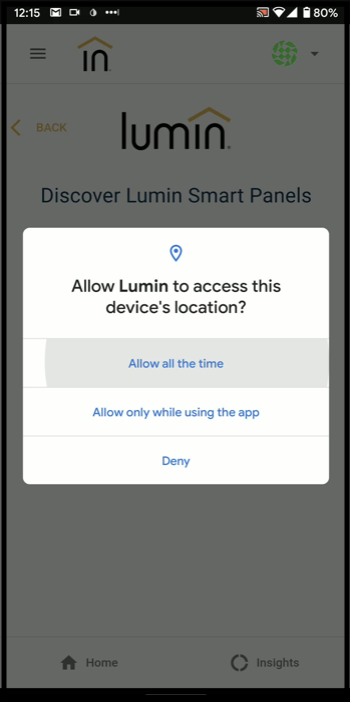

A “Allow Lumin to access this device’s location?” prompt on the Discover Lumin Smart Panels screen of the Lumin Smart app. It asks whether to allow Lumin to access location all the time, allow only when using the app, or to deny access.

9. Select the desired WiFi network from the list of available networks and enter the password.

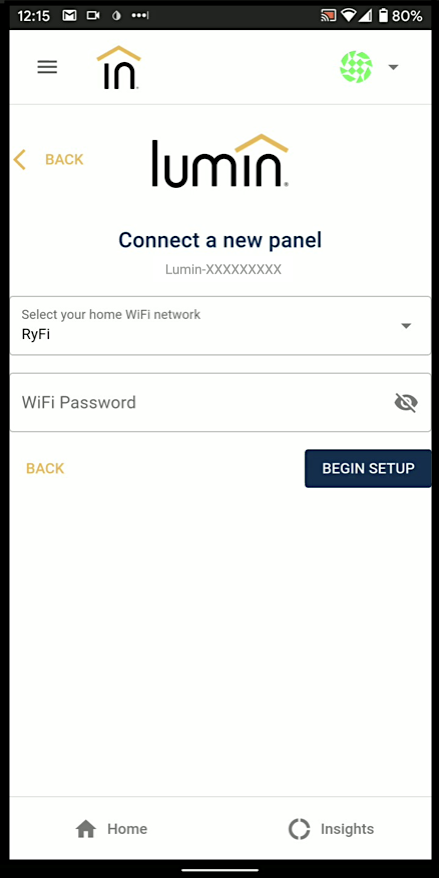

The Connect a New Panel screen of the Lumin Smart app. The two following fields are available: Select your home WiFi network and WiFi Password.

10. Choose Begin Setup.

A status window will appear while Lumin connects. Once online, the lights on the side of the LSP will change from a blinking state to a steady, unblinking state. The blue light will go solid first, indicating that the LSP is able to send and receive a ping via the internet. The green light should go solid a few moments after the blue light, indicating that the LSP has connected to Lumin's off-site servers.

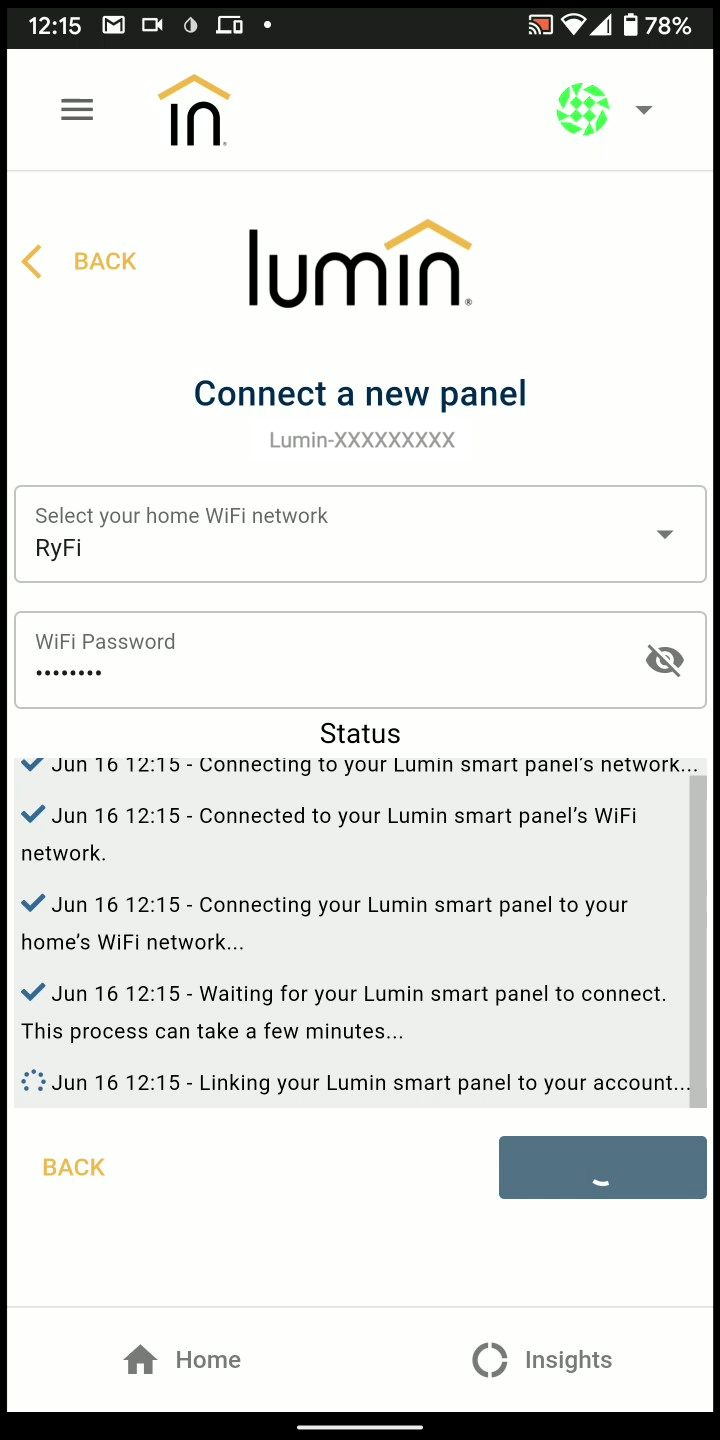

The Connect a New Panel screen on the Lumin Smart app, with the WiFi Network and WiFi Password fields completed. The setup process has begun, and a Status window displays the progress.


After successfully connecting, the Lumin Smart app will display additional settings options relating to panel configuration, circuits, and smart controls. This information is populated during initial installation and generally does not need to be updated when entering new WiFi credentials. Once the process above is complete, select the Lumin icon near the top of the app to return to the Home screen and resume normal operation.
