Both legs of a dual-pole circuit must be connected to and controlled by the Lumin Smart Panel. Watch the linked video to learn how to handle dual-pole circuits and receive a general wiring overview.

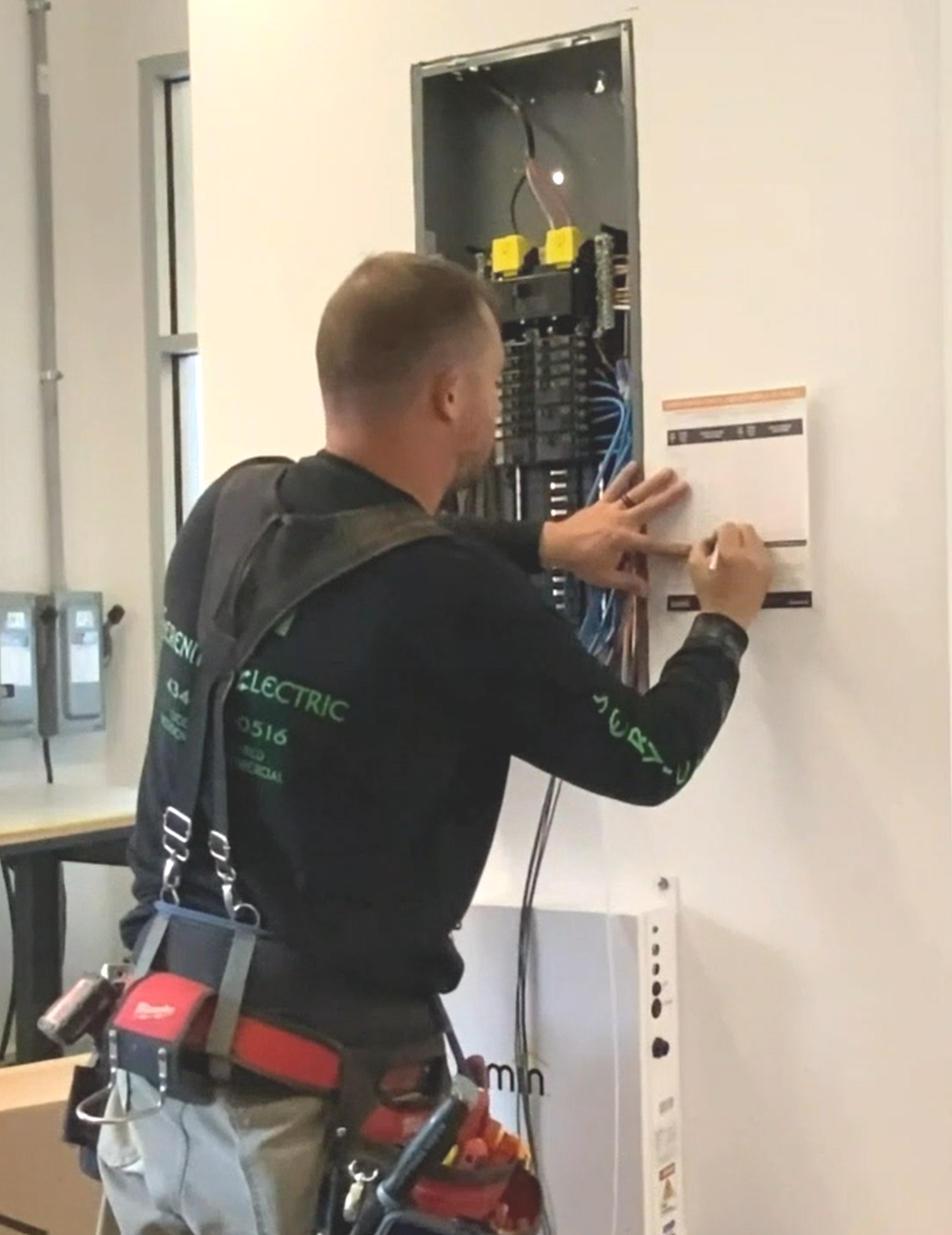

An electrician filling out a circuit table form.

Provided below is the same information mentioned in the video:

  1. Both legs of dual-pole circuits should be controlled by Lumin.
  2. Use one set of blue Lumin breaker and load wires for each leg of a dual-pole circuit.
  3. On the circuit table, record the name of the circuit in the spaces next to both controlling Lumin lines and record the phase for each leg of the circuit.
  4. Repeat the steps to connect your Lumin Smart Panel to a circuit breaker until all Lumin Smart Panel line numbered wires are connected.


Please note that this brief video and verbiage above is not meant to replace reading the installation manual. In particular, the manual contains information about properly identifying the phase of the feeders or service conductors in the load center Lumin controls.


For more information on the installation manual, please refer to the following article:
